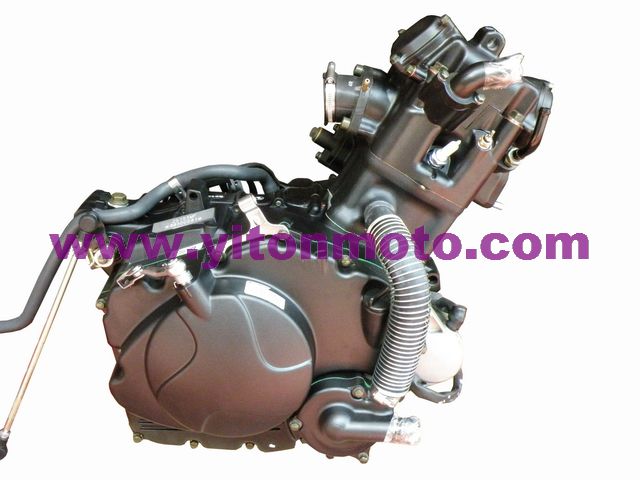

发动机型号Engine Mode

ZS183FMP

发动机俗称Engine Name

LY350

发动机型式Engine Type

单缸、四冲程、自然风冷、顶置凸轮、带平衡轴

Single cylinder,4-stroke,air-cooling, camshaft upwards, with balance shaft.

排量Displacement(ml)

348.8

外形尺寸Dimension(mm×mm×mm)

500×392×470

净重量Net Weight(kg)

45

最大功率Max.Power(kw/r/min)

17.0/7500(1±5%)

最大扭矩Max.Torque (N.m/r/min)

24.0/6000(1±5%)

缸径与行程Bore and Stroke(mm×mm)

83.0×64.5

点火方式Ignition method

电容储能式CFW

润滑方式Lubrication method

压力和飞溅  Pressure and Splash

最低燃油消耗率

Min.Fuel Consumption(g/Kw.h)

≤354

启动方式Starting method

电启动Electric

离合方式Clutch method

手动湿式多片式Manual Wet Multi-Plate

变速方式Gearshift Method

六档国际档加倒档6-speed gearshift and reverse gear

可选款式Chosen options

标准款Standard options

适用车型Applicable Motorcycle Type

沙滩车、公路跑车ATV、Racing motorcycle
