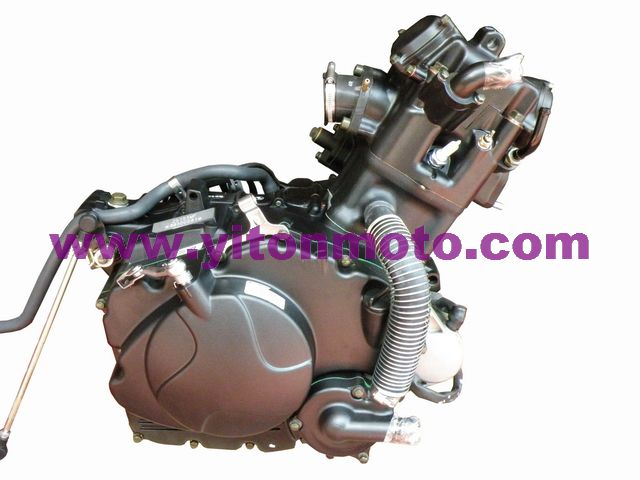

Engine Mode                         ZS183FMP
Engine Name                           LY350
Engine Type Single cylinder,4-stroke,air-cooling, camshaft upwards, with balance shaft.
Displacement(ml)      348.8
Dimension(mm×mm×mm)    500×392×470
Net Weight(kg)                    45
Max.Power(kw/r/min)       17.0/7500(1±5%)
Max.Torque (N.m/r/min)      24.0/6000(1±5%)
Bore and Stroke(mm×mm)          83.0×64.5
Ignition method CFW
Lubrication method       Pressure and Splash
Min.Fuel Consumption(g/Kw.h)     ≤354
Starting method                   Electric
Clutch method                 Manual Wet Multi-Plate
Gearshift Method   6-speed gearshift and reverse gear
Chosen options                    Standard options
Applicable Motorcycle Type  ATV、Racing motorcycle
