PRODUCTS  >>  ATV/UTV

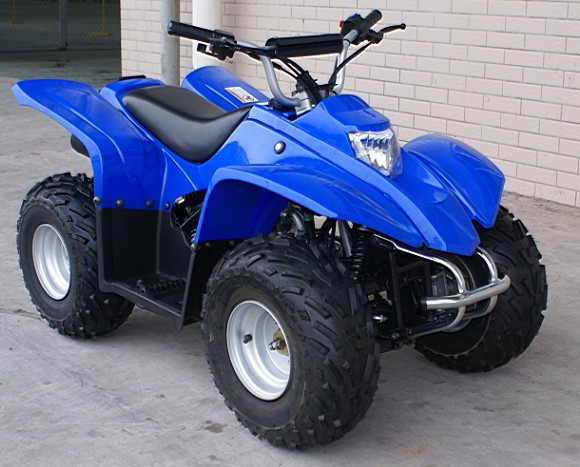

NAME 70CC ATV MODEL YTATV-70

SPECIFICATION
Engine
 Type: Single Cylinder,4-stroke,CVT
 Ignition Mode: CDI
 Compression Proportion: 9.4:1
 Start Mode: Electric
 Fuel Tank Capacity: 5.7L
 Transmission Mode: Chain
 Displacement: 49.46mL
 Power: 2.6/8500kW/rpm
 Horse Power: HP
 Max. Torque: 3.0/7500N.m/rpm
 Min. Ground Clearance: 90mm
 Max. Speed 30km/h
 Power Source: 12V4Ah
 Transmission: Automatic Clutch,CVT,No Reverse
 Cylinder Size: 39x41.4mm
 Engine Oil: 0.6L
 Lubrication: SF15W-40
 Parking Trig: Manual Lock
 Gas Cylinder Number: 1
Chassis
 Front Wheels: 16×8.0-7
 Rear Wheels: 16×8.0-7
 Break Type(F/R): Drum/Disc
 Front Hanging: Double Arm-Swing
 Rear Hanging: Itegral
Dimensions
 Product Dimensions: 1360x720x840mm
 Carton dimensions: 1330x760x640mm
 Wheelbase: 840mm
 Seat Height: 580mm
 Vehicle Weight: 82kg
 Load Capacity: 45kg
 Climbing Degree: 20°
 Min. Turning Radius: 2200mm
 Max. Number of Riders: 1
Others
 Conveyance: Qty/20"GP: 36units
Qty/40"GP: 81units
Qty/40"HQ: 108units
 Color: Red/Yellow/Blue/Green/Black
 Port Of  Shipment Chongqing, China
 Package Outer Carton with Inner Iron Frame,  weight is about 20-30kgs   Carton Size:  1330x760x640mm
 Payment Terms: 30% T/T deposit, 70% balance before the shippment.
 Delivery Time:
 Min. Order One 40" HQ Container (Can mix different models in one 40" HQ Container)
 Warranty Six months for the engine and chain, if buy with 40" HQ containers, we attach 0% free parts
