| Basic Status: |

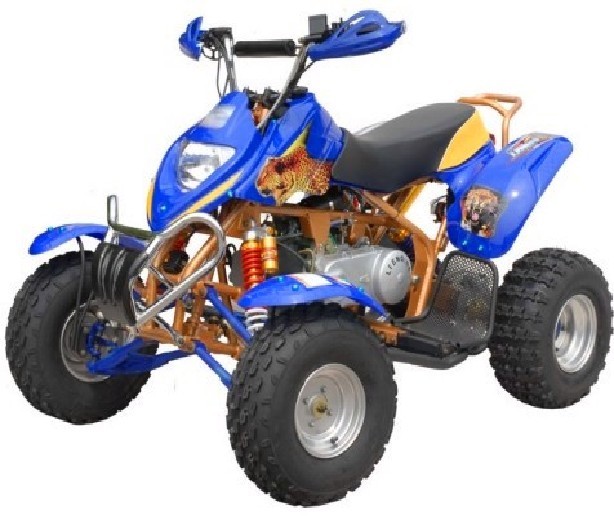

| Steel wheels, 150cc air-cooled CVT engine, Front Drum Brakes, Rear Disk brake, Elec. starter. |
| Loading Quantity (MOQ) |
| Packing in SKD: |
18/63 Pcs (20GP/40'HQ) |
| Package Way: |
Steel with carton package |
| Payment Term |
| 1. T/T: 40% deposit, 60% balance will be paid before delivery. |
| 2. T/T: 50% deposit, 50% balance will be paid within 5 days after get the copy of B/L. |
|
| 3. L/C: Irrevocable L/C at sight, total amount will be add 1%. |
| Delivery Time: |
15-25 working days |
| |
|
| Notice: Above prices are based on a full container quantity and basic status. |
| |
| Technical Parameters |
| Dimenssion (mm) |
1770x1180x1080 |
| Front Wheelbase (mm) |
1000 |
| Wheel Base (mm) |
1140 |
| Displacement (ml): |
149 |
| Engine Type |
1-cylinder, 4-stroke, Air-cooled |
| Max. Power (kw/r/min): |
5.6Kw/7000r/min |
| Max. Torque (N.m/r/min): |
9.0N.m/5500r/min |
| Max. Speed (km/h) |
≥60 |
| Transmission Systerm |
Chain drive |
| Transmission |
CVT, 150GY6 with reverse gear |
| Fr./Rr. Suspension |
Double/a swing arm |
| Fr. Tyre Size |
19*7-8 |
| Rr.Tyre Size |
18*9.5-8 |
| Wheel Rim |
Steel rim |
| Fr./Rr. Brakes |
Drum/Disk |
| Reverse Gear |
With reverse gear |
| Starting Mode |
Electric/Kick Start |
| Ignition Mode |
CDI |
| Dry Weight (kg) |
158 |
| Max. Loading Capacity(kg) |
238 |
| |
| MAIN FEATURES |
| 1. Leopard Series with charming, comfortable, safe, entertaining characteristics. |
| 2. Patent model with good reputation and flexible options. |
| 3. More friendly to our environment with the 4-stroke engine. |
| 4. We are one of the Lead factories that designed and manufactured ATVs in China. |
| 5. This EEC model is welcomed by most countries on each Canton Fair. |
Zongshen Engines
