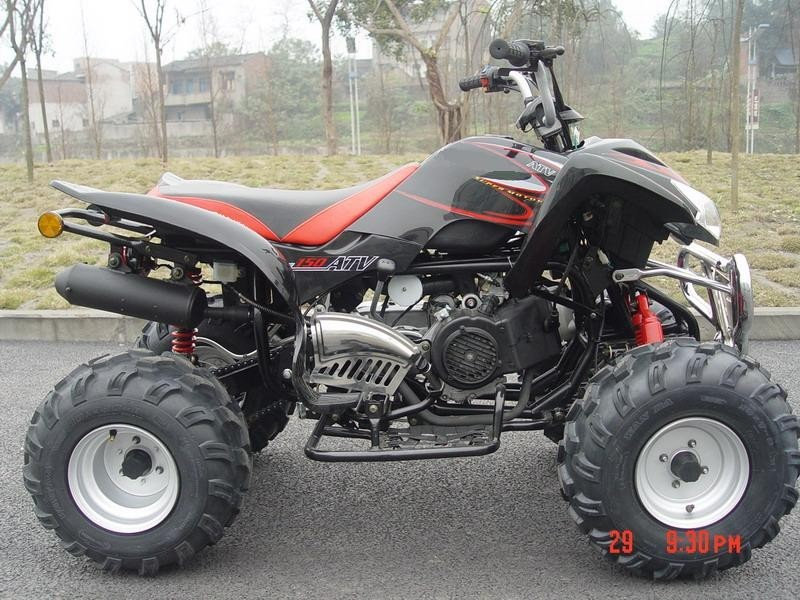

| 150ATV-2 |
| SPECIFICATION |
| Engine |
|
| Type: |
Single Cylinder, Air-Cooled, 4-Stroke |
| Ignition Mode: |
CDI |
| Compression Proportion: |
9.2:1 |
| Start Mode: |
Electric |
| Fuel Tank Capacity: |
7.8 L |
| Transmission Mode: |
Chain |
| Displacement: |
149.5ml |
| Power: |
6.5kW/7500rpm |
| Max. Torque: |
9N.m/6000rpm |
| Min. Ground Clearance: |
100mm |
| Max. Speed |
≥45km/h |
| Power Source: |
12V9Ah |
| Transmission: |
CVT |
| Cylinder Size: |
57.4x57.8mm |
| Engine Oil: |
0.9L |
| Lubrication: |
Press Splash |
| Parking Trig: |
Mechanical Lock |
| Gas Cylinder Number: |
1 |
| Chassis |
|
| Front Wheels: |
19×7-8 |
| Rear Wheels: |
18×9.5-8 |
| Break Type : |
Drum/Disc |
| Front Hanging: |
Single A-Arm |
| Rear Hanging: |
Integral |
| Dimensions |
|
| Product Dimensions : |
1610×900×1030mm |
| Carton Dimensions: |
1460×860×775mm |
| Wheelbase: |
1110mm |
| Seat Height: |
780mm |
| Vehicle Weight: |
150kg |
| Load Capacity: |
130kg |
| Climbing Degree: |
≥20° |
| Min. Turning Radius: |
2400mm |
| Max. Number of Riders: |
1 |
| Others |
|
| Conveyance: |
Qty/20"GP:18units |
| Qty/40"GP:66units |
| Qty/40'HQ:66units |
| Color: |
Red/Yellow/Blue/Black |
| Payment Terms: |
30% T/T deposit, 70% balance before the shippment. |
| Delivery Time: |
|
| Min. Order |
One 40" HQ Container (Can mix different models in one 40" HQ Container) | |
|
|
|
