PRODUCTS >> ATV/UTV |
|
|
|
|
|

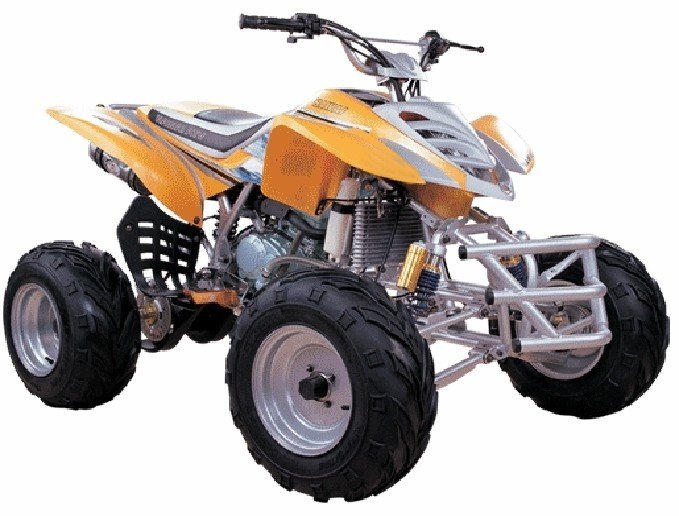

| 250ATV-11 |
| SPECIFICATION |
| Engine |
|
| Type: |
Single Cylinder, Water-Cooling, 4-Stroke |
| Ignition Mode: |
CDI |
| Compression Proportion: |
9.2:1 |
| Start Mode: |
Electric |
| Fuel Tank Capacity: |
4L |
| Transmission Mode: |
Chain |
| Displacement: |
226ml |
| Power: |
10kW/7000-8000rpm |
| Max. Torque: |
15N.m/4500-6500rpm |
| Min. Ground Clearance: |
120mm |
| Max. Speed |
≥75km/h |
| Power Source: |
12V9Ah |
| Transmission: |
4Gears with Reverse Gear, Manual Clutch |
| Cylinder Size: |
63.5×62.2 mm |
| Engine Oil: |
1.1L |
| Lubrication: |
Press Splash |
| Parking Trig: |
Mechanical Lock |
| Gas Cylinder Number: |
1 |
| |
|
| Chassis |
|
| Front Wheels: |
21×7-10 |
| Rear Wheels: |
20×10-10 |
| Break Type : |
Hydraulic Disc |
| Front Hanging: |
Double Arm-Swing |
| Rear Hanging: |
Integral |
| Dimensions |
|
| Product Dimensions : |
1680×1115×1120mm |
| Carton Dimensions: |
1480×850×880mm |
| Wheelbase: |
1150mm |
| Seat Height: |
880mm |
| Vehicle Weight: |
155kg |
| Load Capacity: |
105kg |
| Climbing Degree: |
≥20° |
| Min. Turning Radius: |
2650mm |
| Max. Number of Riders: |
1 |
| Others |
|
| Conveyance: |
Qty/20"GP:20units |
| Qty/40"GP:44units |
| Qty/40"HQ:66units |
| Color: |
Red/Yellow/Blue/Green |
| Port Of Shipment |
Chongqing, China |
| Package |
Outer Carton with Inner Iron Frame, weight is about 20-30kgs Carton Size: 1480×850×880mm |
| Payment Terms: |
30% T/T deposit, 70% balance before the shippment. |
| Delivery Time: |
|
| Min. Order |
One 40" HQ Container (Can mix different models in one 40" HQ Container) | |
|
|
|
Zongshen Engines
