PRODUCTS >> ATV/UTV |
|
|
|
|
|

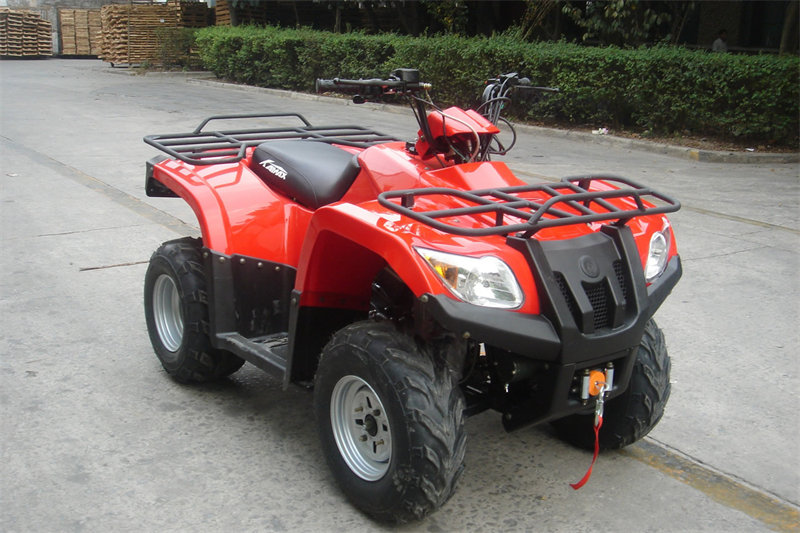

| 250ATV |
| Specification |
| Engine |
|
| Type: |
Single cylinder, air-cooling, 4-stroke |
| Ignition mode: |
CDI |
| Compression proportion: |
8.7:1 |
| Start mode: |
electric |
| Fuel tank capacity: |
11L |
| Transmission mode: |
axis |
| Power: |
10kW/7,500rpm |
| Max. torque: |
15Nm/6,000rpm |
| Min. ground clearance: |
155mm |
| Max. speed |
≥55km/h |
| Power source: |
12V, 14Ah |
| Transmission: |
5 gears, automatic clutch |
| Cylinder size: |
71 x 58mm |
| Engine oil: |
1.6L |
| Gear oil: |
0.25L |
| Lubrication: |
press splash |
| Displacement: |
229.6mL |
| Parking trig: |
mechanical lock |
| Gas cylinder number: |
1 |
| Chassis |
|
| Front wheels: |
23 x 7 - 10 |
| Rear wheels: |
22 x 10 - 10 |
| Break type (F/R): |
drum/drum |
| Front hanging: |
single arm-swing |
| Rear hanging: |
integral |
| Dimensions |
|
| Product dimensions : |
1,850 x 1,030 x 1,130mm |
| Carton dimensions: |
1,970 x 1,110 x 880mm |
| Wheelbase: |
1,160mm |
| Height of seats: |
820mm |
| Dry weight: |
230kg |
| Load capacity: |
165kg |
| Climbing degree: |
≥25° |
| Min. turning radius: |
2,900mm |
| Max. number of riders: |
1 |
| Others |
|
| Conveyance: |
Qty/20’GP: 12 units |
| |
| Qty/40’GP: 24 units |
| |
| Qty/40’HQ: 36 units |
| color: |
red/yellow/blue/green/camouflage |
| Payment Terms: |
30% T/T deposit, 70% balance before the shippment. |
| Delivery Time: |
30-35 days or so upon your advance payment | |
|
|
|
