PRODUCTS >> ATV/UTV |
|
|
|
|
|
| Basic Parameter |
| Vehicle Name |

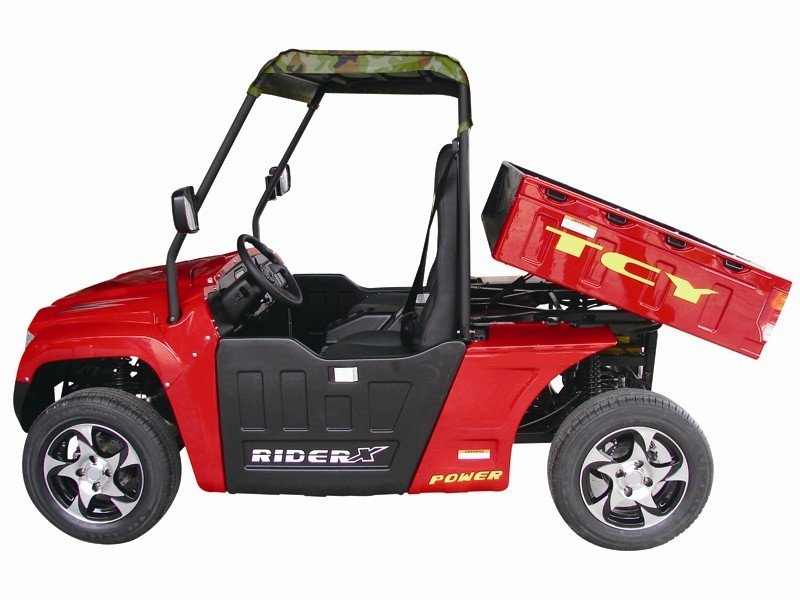

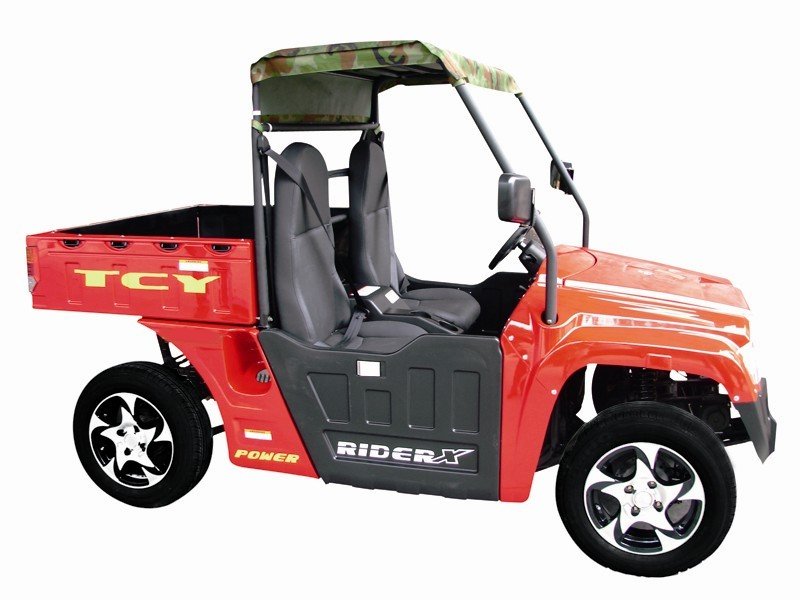

BH ELECTRIC UTV |
| Manufacture |
Chongqing Baohua Motorcycle Co., Ltd. |
| Type |
UTV |
| Power |
5Kw AC Variable frequency motor |
| Transmission Type |
Automatic |
| Max. Speed(Km/h) |
45Km/h |
| Endurance Time |
120KM |
| Dimension |
| L x W x H(mm) |
3020mm x 1460mm x 1800mm |
| Wheelbase(mm) |
1960mm |
| Track Front(mm) |
1420mm |
| Track Rear(mm) |
1430mm |
| Ground Clearance(mm)： |
240mm |
| Seat Height |
460mm |
| Net Weight(Kg)： |
450Kg |
| Power |
| Motor Type |
BH Motor |
| Max. Power(kw) |
5kw/3600rpm |
| Max Torque(N·m)： |
13.4N.m/3000rpm |
| Battery Type |
220Ah/6v x 8 |
| Charge time |
8-12h |
| Chassis |
| Drive Type |
Centrally-mounted,Rear wheel drive |
| Suspension/Front |
"MacPherson(strut) type" front independent suspension |
| Suspension/Rear |
Independent suspension double swing arm |
| Chassis Structure |
Whole framework and high intensity& Highly torsion-resistant |
| Tire&Brakes |
| Brakes/Front |
Hydraulic Disc |
| Brakes/Rear |
Hydraulic Disc |
| Parking Braking |
Hand Brake |
| Tire/Front |
175/70R14 |
| Tire/Rear |
175/70R15 |
| OTHER |
| Container Loading |
Qty/20’ GP: 6 units |
| Qty/40’ HQ: 12 units |
| OPTION |
| option(accessory) |
1 Winch ＄73 |
| |
2 ALLOY HUB ＄60 |
| |
3 Camouflage color ＄42 |
| |
4 Trailer(hitch) ball ＄8 |  |
|
|
|
