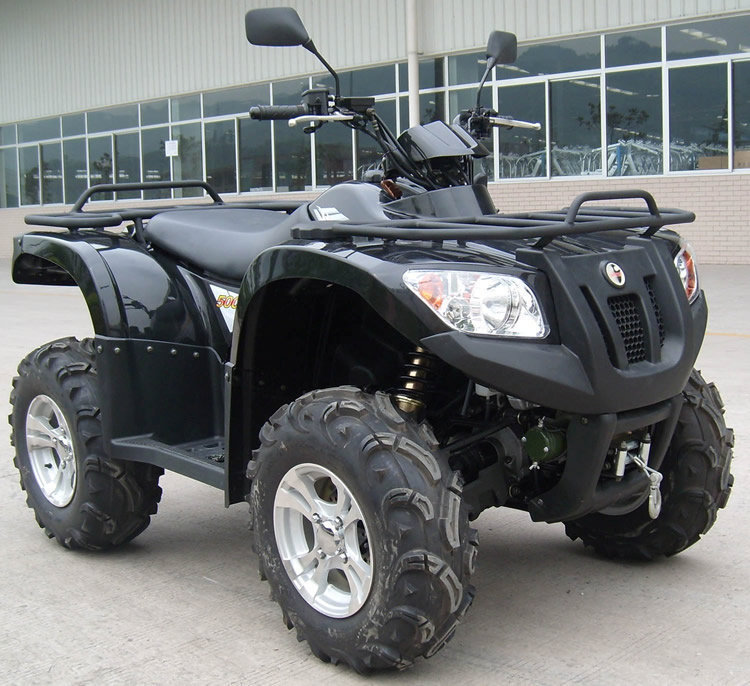

PRODUCTS >> ATV/UTV |
|
|
|
|
|
| Engine |
|
| Type: |
Single cylinder,4-stroke,water-cooling,4-valve,SOHC,single balance axle |
| Ignition mode: |
CDI |
| Compression ratio: |
10.2:1 |
| Start mode: |
Electric or recoil start |
| Fuel tank capacity: |
19L |
| Transmission mode: |
Shaft drive |
| Displacement: |
493ml |
| Power: |
24kw/6500r/min |
| Horse Power: |
|
| Max.torque: |
38.8N.m/5500/rpm |
| Min.ground clearance: |
280mm |
| Max.speed |
99km/h |
| Battery: |
12V,20Ah |
| Transmission: |
CVT,automatic,1 low froward,1 high forward,1 neutral,and inner reverse gear |
| Bore and stroke: |
87.5x82mm |
| Engine oil: |
2.5L |
| Lubrication: |
SF-15W/40 or the same grade |
| Parking brake: |
Mechanical lock |
| Gas cylinder number: |
1 |
| Chassis |
|
| Front wheels: |
AT25X8-12 |
| Rear wheels: |
AT25X10-12 |
| Break type (F/R): |
Hydraulic disc, front and rear |
| Front suspension: |
Independent double swing-arm, hydraulic shock absorber |
| Rear suspension: |
Independent double swing-arm, hydraulic shock absorber |
| Dimensions |
|
| Product dimensions : |
2060*1200*1200mm |
| Packing size: |
2310x1250x850mm |
| Wheel base: |
1285mm |
| Seat Height: |
860mm |
| Vehicle weight: |
345kgs |
| Load capacity: |
135kgs |
| Climbing angle: |
≥ 32 ° |
| Min.turning radius: |
3200mm |
| Max.number of riders: |
1 |
| Others |
|
| PRICE |
FOB CHINA CHONGQING USD3550.00/UNIT |
| Container Loading |
Qty/20’ GP: 8 units |
| Qty/40’ GP: 18 units |
| Qty/40’ HQ: 27 units |
| OPTION |
|
| option(accessory) |
1 Winch ＄73 |
| 2 ALLOY HUB ＄60 |
| 3 Camouflage color ＄42 |
| 4 Trailer(hitch) ball ＄5 | |
|
|
|
